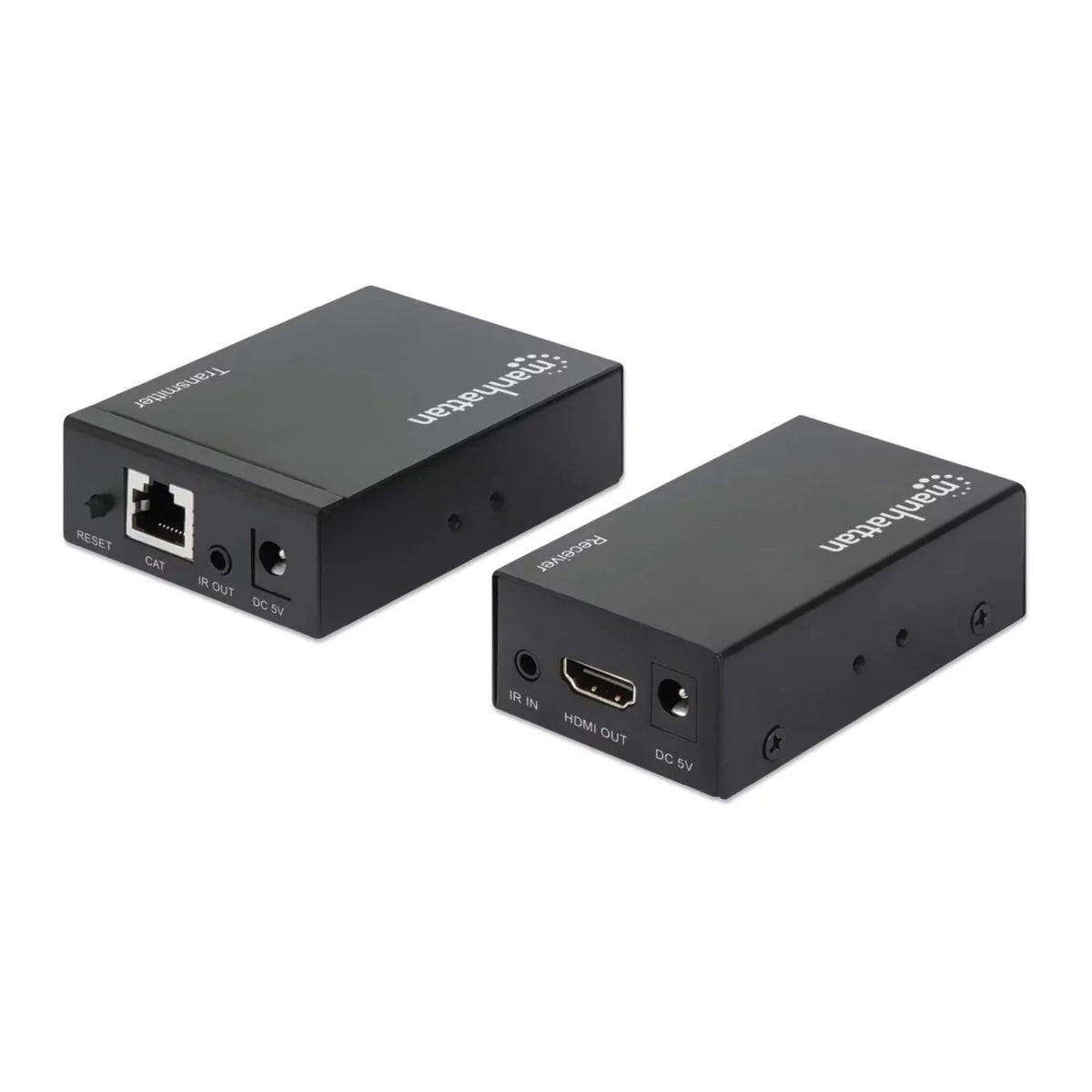

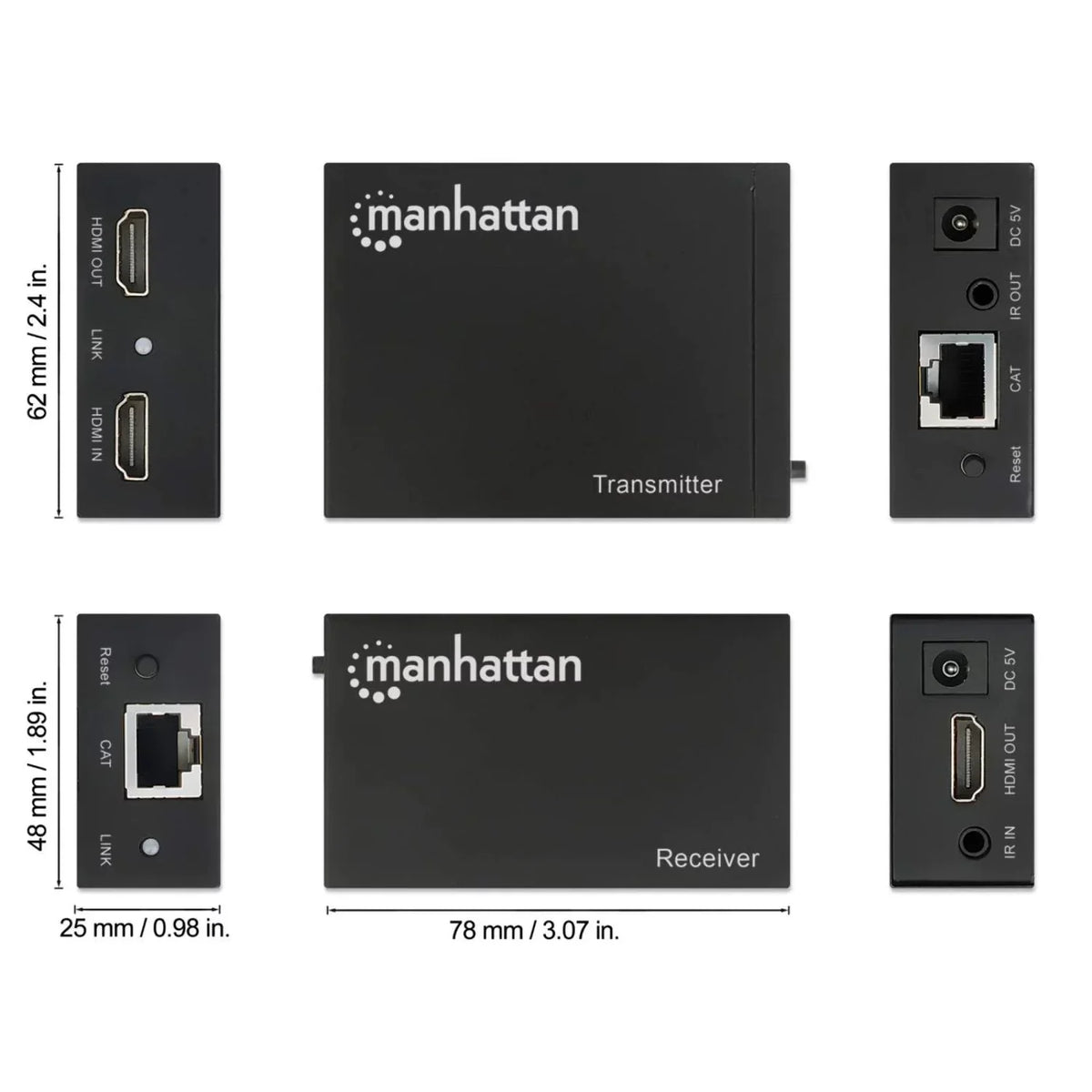

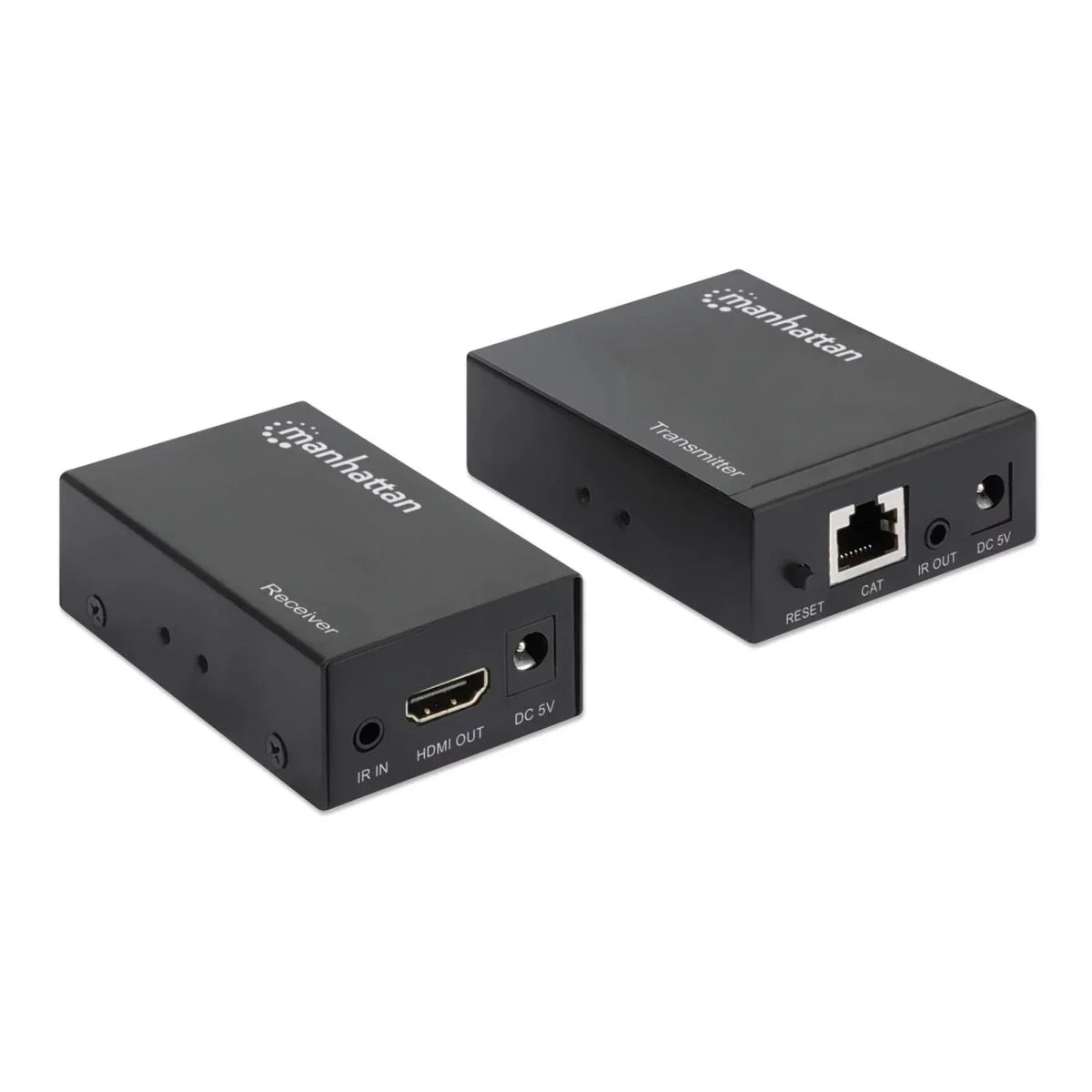

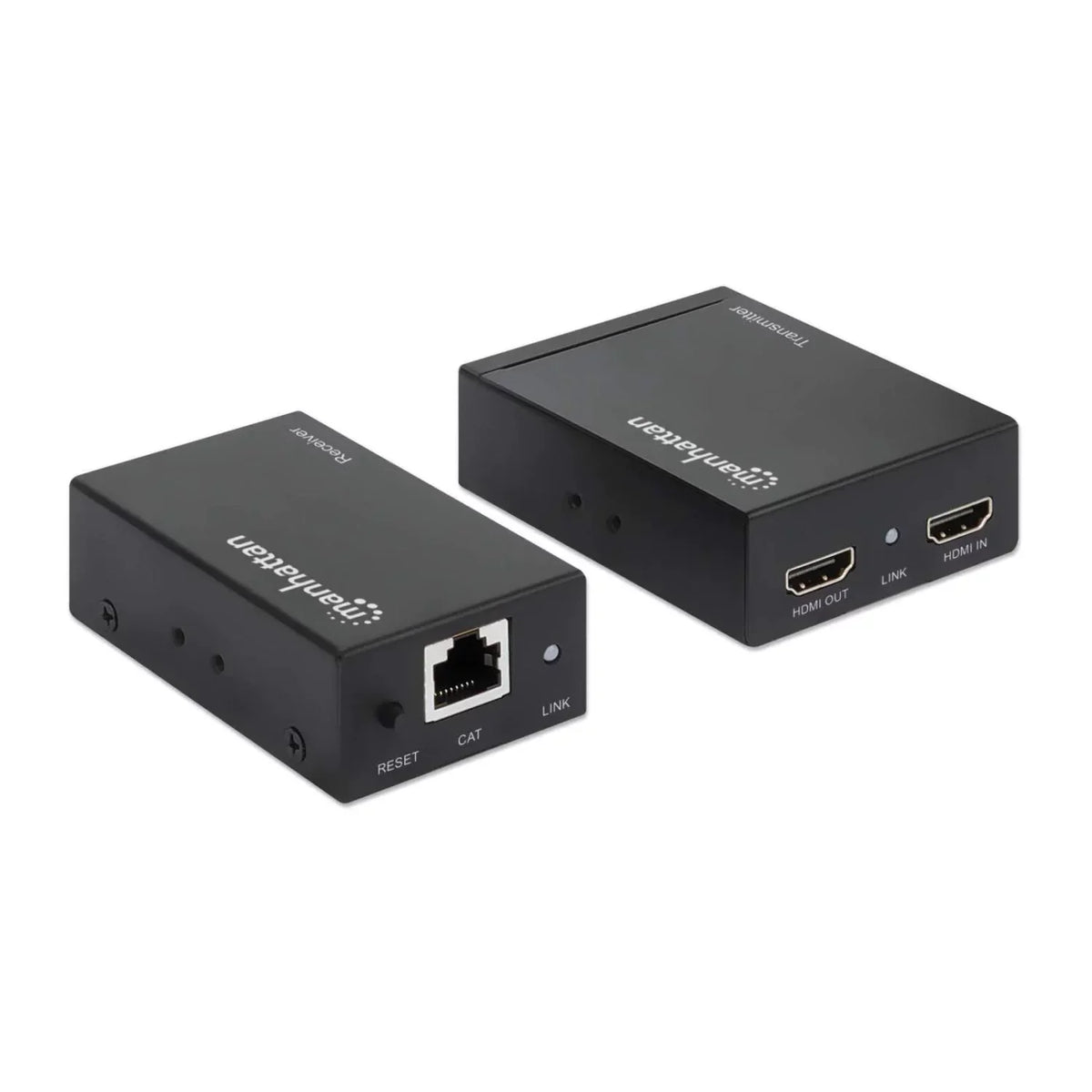

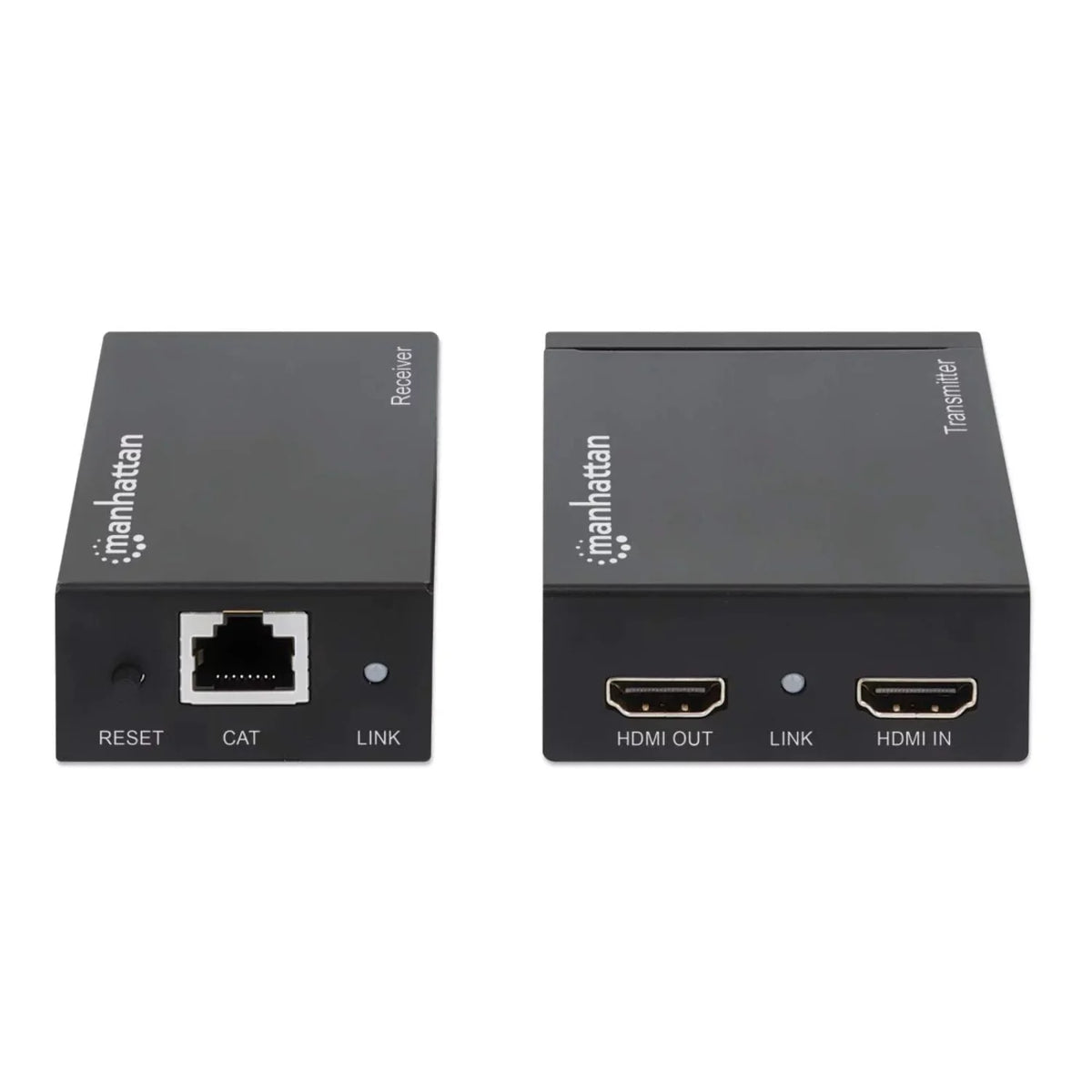

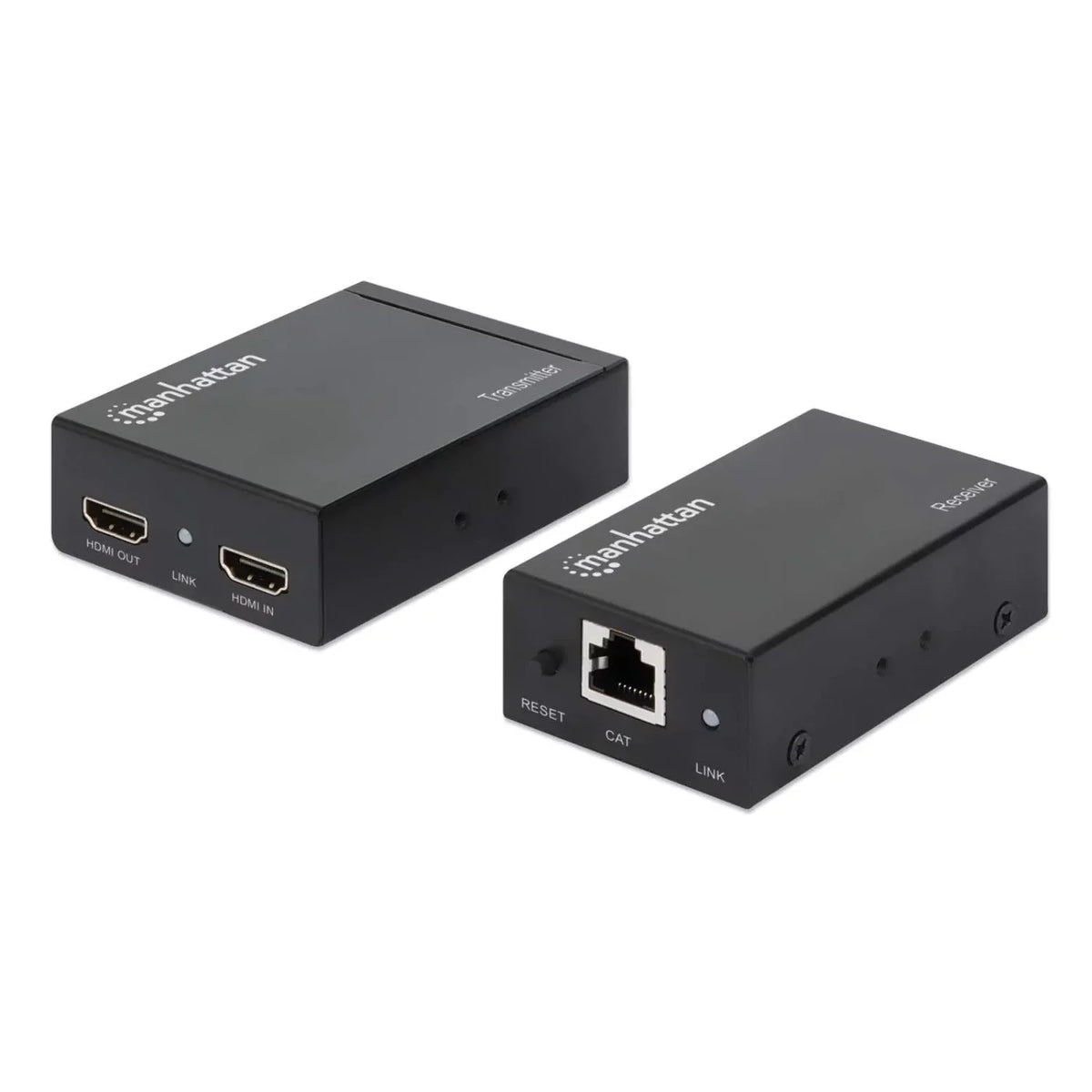

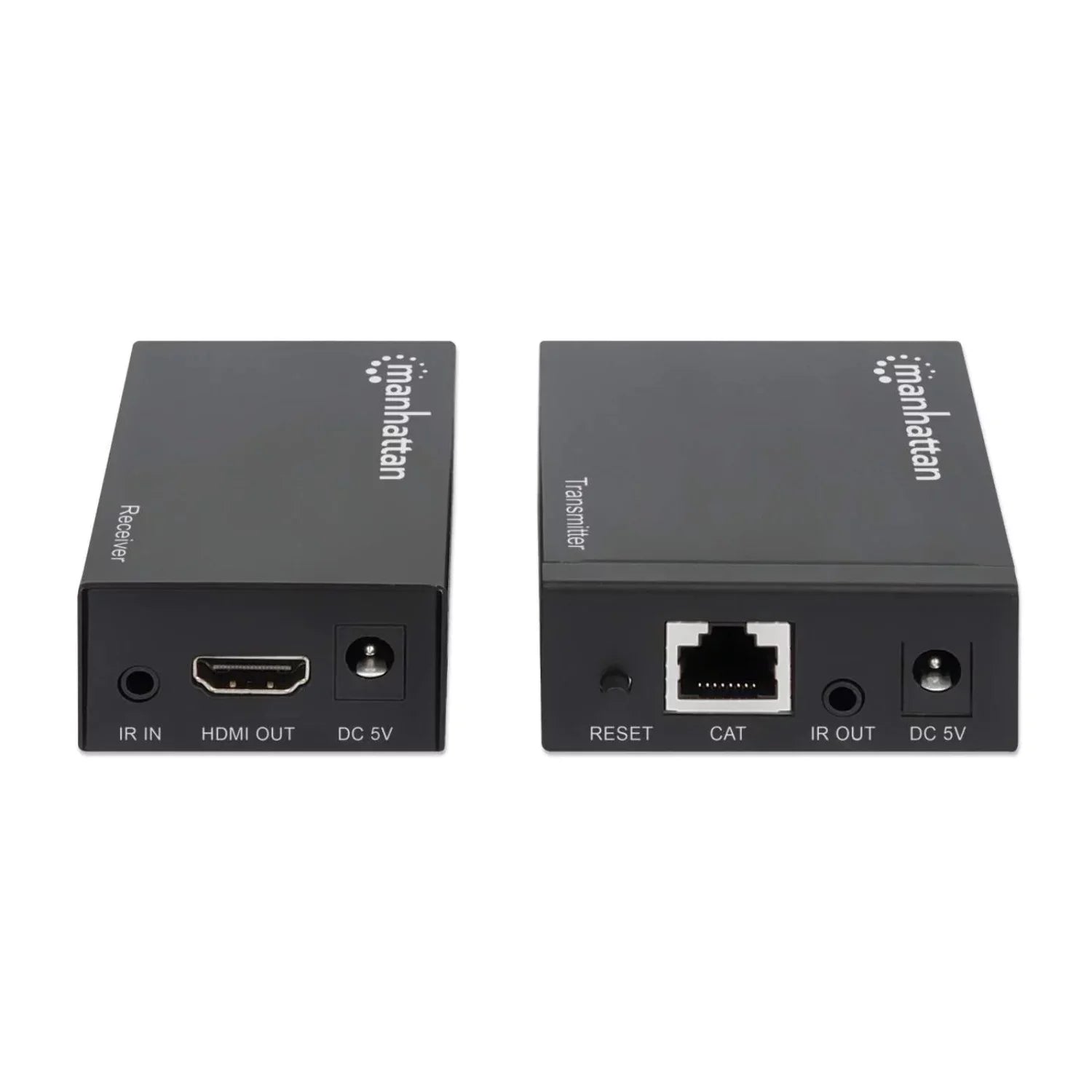

Manhattan 1080p HDMI over Ethernet Extender Kit Up to 164 ft. with Single Cat6 Cable and IR support
$19.30
Skip to product information
Manhattan 1080p HDMI over Ethernet Extender Kit Up to 164 ft. with Single Cat6 Cable and IR support
$19.30
Extends HDMI connection up to 50 m (164 ft.) between an HDMI source and an HD monitor or projector using one Ethernet cable Two-port (one HDMI, one Ethernet) transmitter allows HDMI signals to be sent over Ethernet and split to local display simultaneously Supports video amplifier bandwidth up to 225 MHz and 2.25 Gbps per channel (6.75 Gbps total) for 1080p displays Supports 5.1 surround sound Wideband IR transmit and receive cables allow for convenient remote control of HD signal source Fully HDCP compliant to protect high-definition content transmission and ensure quality reception Plug and play — requires no installation or configuration Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more Gold-plated contacts for corrosion-free connections For additional distance capabilities, use 15 m HDMI cables (see part # 308434) on both transmitter and receiver Three-year warranty Standards and Certifications HDCP DVI 1.0 CTS 1.2 CE FCC RoHSGeneral Cat6 cable 1080p at 50 m (165 ft.) Cat6 cable 720p at 70 m (230 ft.) Cat6 cable 480p at 100 m (300 ft.) Power: 5 VDC / 1 A (cable length: 1.4 m [4.5 ft.])Connections Two HDMI female (transmitter) One HDMI female (receiver) One RJ45 female (transmitter/receiver) One 5 VDC power female (transmitter/receiver) One 3.5 mm IR female (transmitter/receiver)Signal Input/Output Input video signal: 0.5 – 1.0 V p-p Input DDC signal: 5 V p-p (TTL) Maximum single-link range: 1920 x 1200/60Hz, 1080p Output video: HDCP 1.2, DVI 1.0 Frequency: 2.25 Gbps / 225 MHzVideo Resolutions DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080pPhysical Dimensions: 81 x 62 x 26 mm (3.19 x 2.44 x 1.02 in.) Net weight: 263 g Gross weight: 583 g Housing: metalOperating Environment Operation Temperature: 0 – 40°C (32 – 104°F) Storage Temperature: -20 – 60°C (-4 – 140°F) Humidity (noncondensing): 0 – 96%Package Contents 1080p HDMI over Ethernet Extender Kit (one receiver and one transmitter module) Power adapter (two units) IR blaster and receiver (one unit each) Quick Install Guide
